How to Reduce Glare on Security Camera

Glare on security cameras can turn your high-resolution surveillance system into a washed-out, unusable mess—especially during sunrise, sunset, or nighttime. Whether it’s blinding sunlight, bouncing infrared (IR) reflections, or harsh artificial lighting, learning how to reduce glare on security camera setups is essential for capturing clear, reliable footage. Left unchecked, glare obscures faces, license plates, and movement, undermining the entire purpose of your system. This guide delivers actionable, real-world solutions backed by technical insights and user-tested strategies. You’ll learn how to diagnose the source of glare, adjust camera placement and settings, use optical tools, and leverage advanced technologies to maintain crisp video in any lighting condition.

Adjust Camera Position and Angle

Repositioning your camera—even slightly—can eliminate direct light exposure and dramatically improve image clarity.

Tilt Camera Downward to Block Direct Sunlight

Aim the lens slightly downward to prevent direct sunlight or bright artificial lights from entering the lens. This is especially effective for outdoor cameras facing east or west, where sunrise and sunset create intense lens flare. While this reduces glare, it may limit visibility of ground-level activity. Balance coverage with clarity by testing angles during peak glare times.

Elevate Mounting Height for Better Coverage

Raising the camera increases the downward viewing angle, helping shield the lens from glare sources. For indoor dome cameras near white walls, even a few inches higher can reduce IR reflection. Outdoor bullet cameras benefit from being mounted above rain gutters or poles—common spots for spider webs that scatter IR light and cause bright orbs in night vision.

Reposition Away From Reflective Surfaces

Move cameras away from walls, windows, glass, or glossy surfaces that reflect light back into the lens. Indoors, keep dome cameras at least 120 mm (0.39 ft) from walls; for fisheye models, maintain ≥3 meters (9.84 ft). Outdoors, avoid mounting near metal siding, plastic straps, or vegetation that catch and bounce IR light.

Optimize TILT and YAW Settings to Prevent Internal Bounce

For dome and PTZ cameras, IR reflection often occurs at extreme angles. Keep TILT ≤70° and YAW ≤50° to prevent internal IR bounce off housing components. At high tilt angles, the camera body itself can block part of the IR array, causing uneven illumination and ghosting. Adjust these settings through your camera’s web interface or app.

Use Sunshades and Light Shields

Blocking unwanted light before it reaches the lens is one of the most effective defenses against glare.

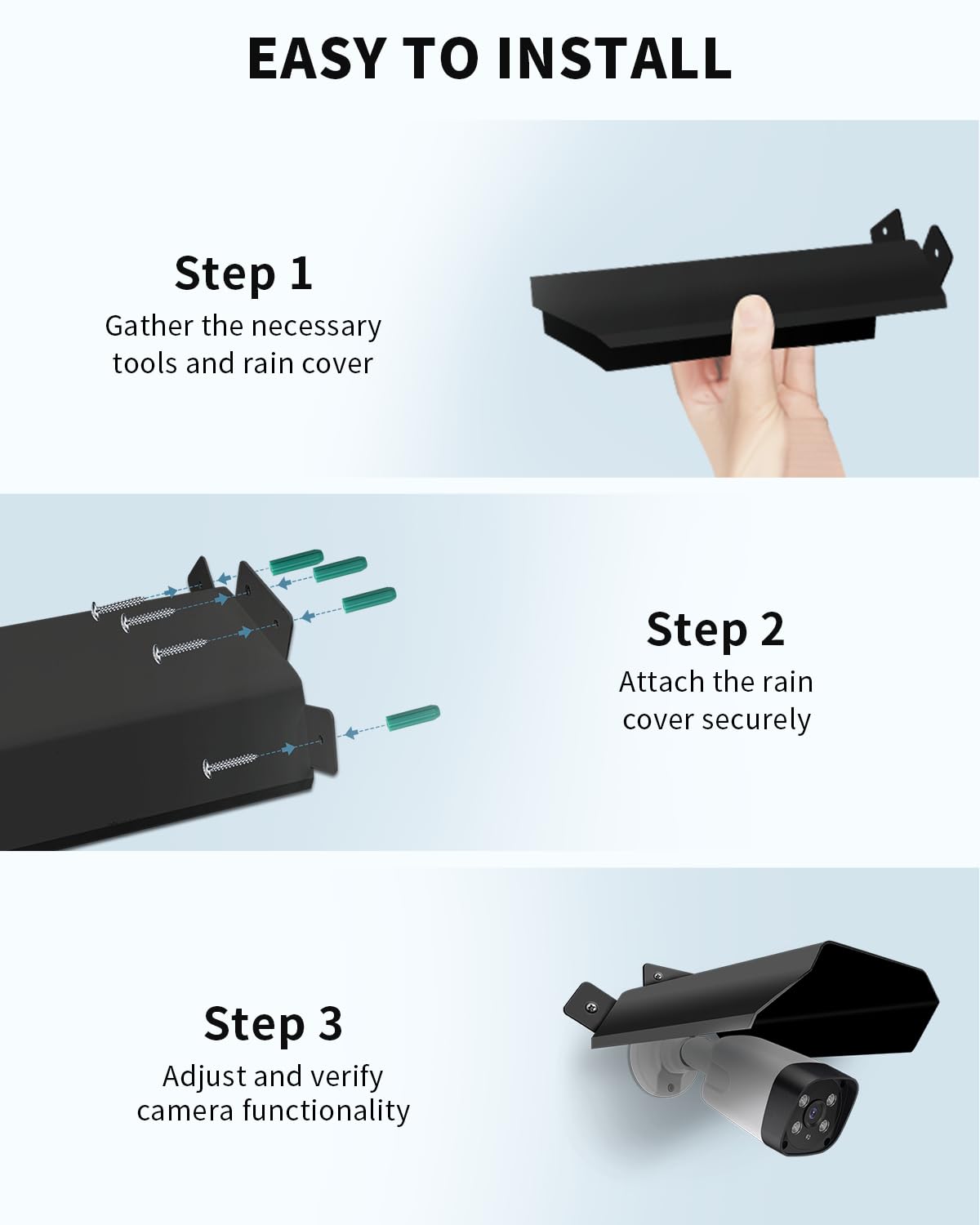

Install Manufacturer-Specific Sunshades

Many brands like i-PRO offer sunshades designed for specific models. These hoods extend over the lens to block overhead and low-angle sunlight, particularly effective during sunrise and sunset. While not always cost-effective for retrofitting older systems, they’re worth considering in new installations.

Build DIY Light Shields for Budget-Friendly Protection

For a low-cost solution, create a custom 3D-printed or cardboard shield. Ensure the material is non-reflective and does not obstruct the field of view. Position it to shade only the lens area without casting shadows on the image. Test during different times of day to confirm effectiveness.

Clean Lenses and Dome Covers Regularly

Dirt, dust, fog, and spider webs are silent glare amplifiers—especially at night when IR light scatters across contaminated surfaces.

Clean With Proper Tools to Maintain Clarity

Use a lint-free microfiber cloth and camera-safe cleaning solution to wipe lenses and dome covers. Avoid household cleaners like Windex, which can damage anti-reflective coatings. For outdoor units, clean after storms or every few months depending on your environment.

Remove Spider Webs and Debris That Cause Nighttime Flare

Spider webs in front of IR cameras cause bright orbs or streaks in night vision. Regularly inspect and remove webs from around the camera, especially on bullet models mounted under eaves or near poles.

Consider Heated Housings or Wipers in Harsh Climates

In fog-prone or high-humidity areas, install cameras with heated housings or wiper systems to keep the dome clear. These prevent condensation and maintain optical clarity, reducing light diffusion and haze.

Apply Optical Filters and Films

Strategic use of filters and films can cut glare without sacrificing image quality.

Use Polarizing Film on Windows for Indoor Cameras

When viewing outdoor scenes through glass, apply polarized window film to reduce low-angle sunlight glare. Costing under $100, this fix works best for indoor cameras and requires building owner approval. It won’t help with IR reflection but greatly improves daytime clarity.

Install CS-Mount Polarizing Filters (For Older Cameras)

For older analog cameras, a CS-mount polarizing filter can reduce glare from water, glass, or polished floors. However, it cuts incoming light by up to two stops, hurting low-light performance. Since polarization effectiveness changes with sun position, seasonal adjustments may be needed. These filters are hard to find for modern IP cameras.

Optimize Camera Settings for Glare Control

Software adjustments can fine-tune exposure and IR output to minimize glare effects.

Lower IR LED Intensity to Reduce Reflection

Reduce the brightness of built-in IR LEDs to prevent over-illumination and reflection off nearby walls or objects. This maintains night vision while eliminating ghosting. Access via:
[Live] → [Detailed setting] → [Image/Audio] → [Image quality] → [Image adjust] → [Day & Night(IR)] → [IR LED Intensity]

Disable Specific IR LEDs on Multi-Sensor Cameras

If the camera is close to a wall, turn off IR LEDs on the side facing it. For example, disable LEDs #5 and #6 if the right side of the image shows white haze. This targeted control prevents unnecessary reflection while preserving illumination elsewhere.

Adjust Exposure and Shutter Speed to Limit Washout

Shorten the maximum shutter speed to reduce IR exposure time and minimize blooming. Lower overall exposure settings when bright lights (e.g., headlights, spotlights) cause halation. Think of it like your pupils constricting in bright light—less light entering means less washout.

Switch to “Auto1” or “Auto3(SCC)” Day & Night Mode

When external lights are present, select “Auto1” or “Auto3(SCC)” mode to optimize the transition between color and black-and-white. This reduces halation and improves dynamic response during light fluctuations.

Turn Off Super Dynamic (SD) to Prevent Blooming

While Super Dynamic enhances contrast, it can cause bright light sources to spread across the image. Set [Super Dynamic(SD)] to “Off” and use masking to black out overly bright areas (like streetlights) instead.

Upgrade Lighting and IR Illumination

Improving external lighting reduces reliance on built-in IR and eliminates reflection issues.

Add External IR Illuminators for Cleaner Night Vision

Mount an external IR illuminator outside the camera’s housing to provide night vision light from a different angle. This is ideal when viewing through glass (e.g., indoor camera watching outdoor area). Choose 850nm or 940nm models to match your camera’s sensitivity and avoid reflection.

Use Ambient Visible Lighting to Avoid IR Mode

Install soft, evenly distributed LED floodlights to illuminate dark zones. This allows the camera to capture color footage without switching to IR mode, eliminating reflection risks. Never point lights directly at the camera lens.

Upgrade to Full-Color Night Vision Cameras

Modern full-color night vision cameras use dual illumination: low-level white light plus IR. They activate white light on motion detection to capture color images at night, reducing the need for intense IR. Ideal for perimeter monitoring where clothing or vehicle color matters.

Leverage Advanced Camera Features

High-end models offer built-in tools to combat glare dynamically.

Enable Wide Dynamic Range (WDR)

WDR balances exposure between bright and dark areas, helping in high-contrast scenes (e.g., a dark yard with a bright porch light). While it doesn’t stop lens flare, it improves detail retention. Use in combination with other fixes.

Activate Highlight Compensation (HLC)

Also known as Spotlight BLC, HLC detects bright spots and adjusts exposure locally. Available on Samsung, Dahua, and CNB cameras, its effectiveness varies by model. Tune settings based on your lighting conditions for best results.

Use P-Iris for Precision Light Control

P-Iris provides finer aperture control than standard auto-iris lenses, improving depth of field and light management. Though not widely tested in extreme glare, early reports show better performance in high-contrast environments.

Enable Smart Motion Detection (SMD)

SMD 4.0 uses deep learning to distinguish real threats from environmental noise like spider webs or swaying branches. By reducing false triggers, it limits unnecessary IR activation and keeps the image cleaner.

Choose the Right Camera Type for Your Environment

Different cameras have different glare vulnerabilities—and solutions.

• Indoor Dome: Avoid wall reflection by increasing distance, lowering IR intensity, and adjusting angles.
• Outdoor Dome: Prevent internal bounce with correct mounts, light shields, and “Auto1” mode.
• Bullet Camera: Eliminate spider web glare by relocating and cleaning regularly.
• Fisheye Camera: Maintain ≥3 meters from walls to prevent edge distortion.
• PTZ Camera: Clear housing obstruction by adjusting tilt or zoom.
• Multi-Sensor Camera: Route cables behind sensors and disable LEDs near walls.

Consider Advanced Technologies

For critical zones, upgrade to systems that bypass glare entirely.

Use Thermal Cameras for Glare-Free Detection

Thermal cameras detect heat, not light—making them immune to glare from sun, headlights, or IR. They work in total darkness, fog, and smoke. Best used for perimeter detection, paired with optical cameras for identification.

Upgrade to 4K Resolution for Digital Clarity

Higher resolution allows digital zoom without losing clarity. If glare affects part of the frame, crop it out while retaining usable detail elsewhere.

Install Vandal-Resistant Housings

Choose IP66/IP67-rated metal housings for durability and reduced internal reflections. They protect against dust, water, and physical tampering.

Follow a Maintenance Routine

Glare prevention isn’t a one-time fix—it requires ongoing care.

Schedule Quarterly Cleanings

Clean lenses, domes, and housings every 3–6 months or after severe weather. Use a soft brush to remove cobwebs and a microfiber cloth for smudges.

Inspect for New Obstructions

Check for added lights, vegetation growth, or structural changes. Address them before they impact video quality.

Update Firmware Regularly

Ensure cameras run the latest firmware to access improved glare-reduction algorithms, exposure controls, and bug fixes.

Enable Vital Sign Monitoring (Business Systems)

For commercial setups, use vital sign monitoring to track camera status remotely. It alerts you if a feed drops or the recorder goes offline.

---

Final Note: No single fix eliminates all glare. The best results come from combining preventive design, physical adjustments, smart settings, and regular maintenance. For sunrise/sunset flare, manage expectations—some temporary washout may be unavoidable. But with the right strategy, you can ensure your security camera delivers clear, usable footage around the clock.
