How to Convert Security Camera to Wireless

You’ve invested in a wired security camera system, but now you need more flexibility. Maybe you’re relocating, can’t run Ethernet cables through walls, or want to install a camera where power and network access are limited. The good news is: you can convert a wired security camera to wireless, even if it only has an RJ45 Ethernet port. Whether it’s a PoE IP camera or an older analog model, you don’t need to replace your entire setup—just adapt it.

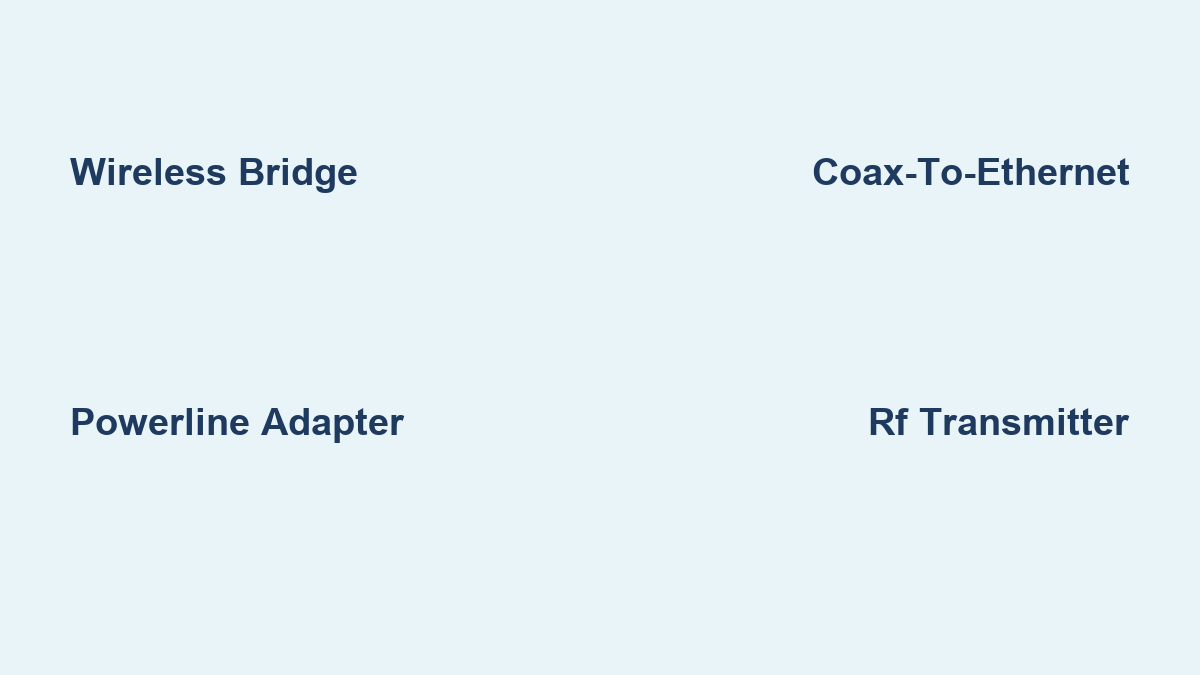

This guide walks you through four proven methods to go wireless: using wireless bridges, powerline adapters, coax-to-Ethernet kits, and RF transmitters. You’ll learn exactly what hardware to buy, how to configure each system, and how to avoid common pitfalls like interference, power issues, and compatibility errors.

By the end, you’ll know how to transform your existing wired camera into a fully functional wireless unit, maintain stable video feeds, and decide when it’s smarter to upgrade instead of retrofit.

Use a Wireless Bridge for IP Cameras

The most reliable way to convert a wired IP security camera to wireless is by using a dedicated wireless bridge. This device connects to your camera via Ethernet and links to your Wi-Fi network, acting as a transparent network adapter.

How a Wireless Bridge Works

A wireless bridge operates in client mode, connecting to your router over Wi-Fi and providing an Ethernet output for your camera. Once configured, the camera appears on your network just like any other device—no changes to your NVR, app, or recording software are needed.

🔍 Key Benefit: Your camera behaves as if it’s plugged directly into the router, even when mounted hundreds of feet away.

Required Equipment

IP security camera (PoE or 12V DC)
Wireless bridge (e.g., Ubiquiti NB24, Engenius EN500)
PoE injector (if camera uses PoE)
12V power supply (for non-PoE models)
Short Ethernet cable

✅ Top Pick: Ubiquiti NB24 – weatherproof, long-range, and supports up to 1km line-of-sight.

Set Up a Wireless Bridge (Ubiquiti Example)

Assign Static IP to Camera

Determine your network subnet (e.g., 192.168.1.x)
Access the camera’s web interface using its default IP
Change from DHCP to Static IP
Assign a fixed address (e.g., 192.168.1.108)
Save and reboot

💡 Why Static? Prevents IP conflicts and ensures consistent connectivity after reboots.

Configure the Wireless Bridge

Connect the bridge to your router via PoE injector
Open a browser and go to 192.168.1.20
Log in with default credentials: ubnt / ubnt
Immediately change the password and set the correct time zone
Go to Wireless > Settings:
– Mode: Access Point
– SSID: Create a unique name (e.g., ubnt-cam)
– Security: WPA2-Personal
– Channel: Choose 1, 6, or 11 (least interference)
– Band: 2.4GHz (for broad compatibility)

⚠️ Disable airMax (MIMO) unless both ends support it—older devices often fail to connect otherwise.

Connect Camera to Bridge

For PoE Cameras:
– Camera → PoE injector (LAN port)
– PoE injector → Bridge (PoE port)

For Non-PoE Cameras:
– Power camera with 12V adapter
– Connect camera → PoE injector → Bridge

✅ Verify all link lights are solid—this confirms physical connectivity.

Connect and View Feed

On a laptop or phone, join the Wi-Fi network named ubnt-cam
Open a browser and enter the camera’s static IP (e.g., 192.168.1.108)
Log in to view the live feed

🛠️ Tip: Use Chrome for best compatibility. Enable ActiveX only if prompted by older camera interfaces.

Try Powerline Networking for Stable Connections

When Wi-Fi signal is weak or unreliable, powerline networking with PoE offers a robust alternative by sending data over existing electrical wiring.

Why Choose Powerline?

Immune to Wi-Fi interference
Works through walls, floors, and basements
Ideal for long-distance runs (200+ feet)

✅ User paarlberg transmitted 5+ cameras 24/7 at 45–60 Mbps using ENH500 powerline adapters—performance matched wired Ethernet.

Equipment Needed

Two powerline adapters (one near router, one at camera)
PoE injector
12V power supply (if not using PoE)

Setup Steps

Plug the first adapter into an outlet near your router
– Connect it to the router via Ethernet
Plug the second adapter at the camera location
– Connect to PoE injector → camera
Wait for the pairing light to stabilize (usually blinks, then solid)
Confirm the camera appears on your network

⚠️ Limitation: Both adapters must be on the same electrical circuit. Surge protectors or multi-phase systems can block the signal.

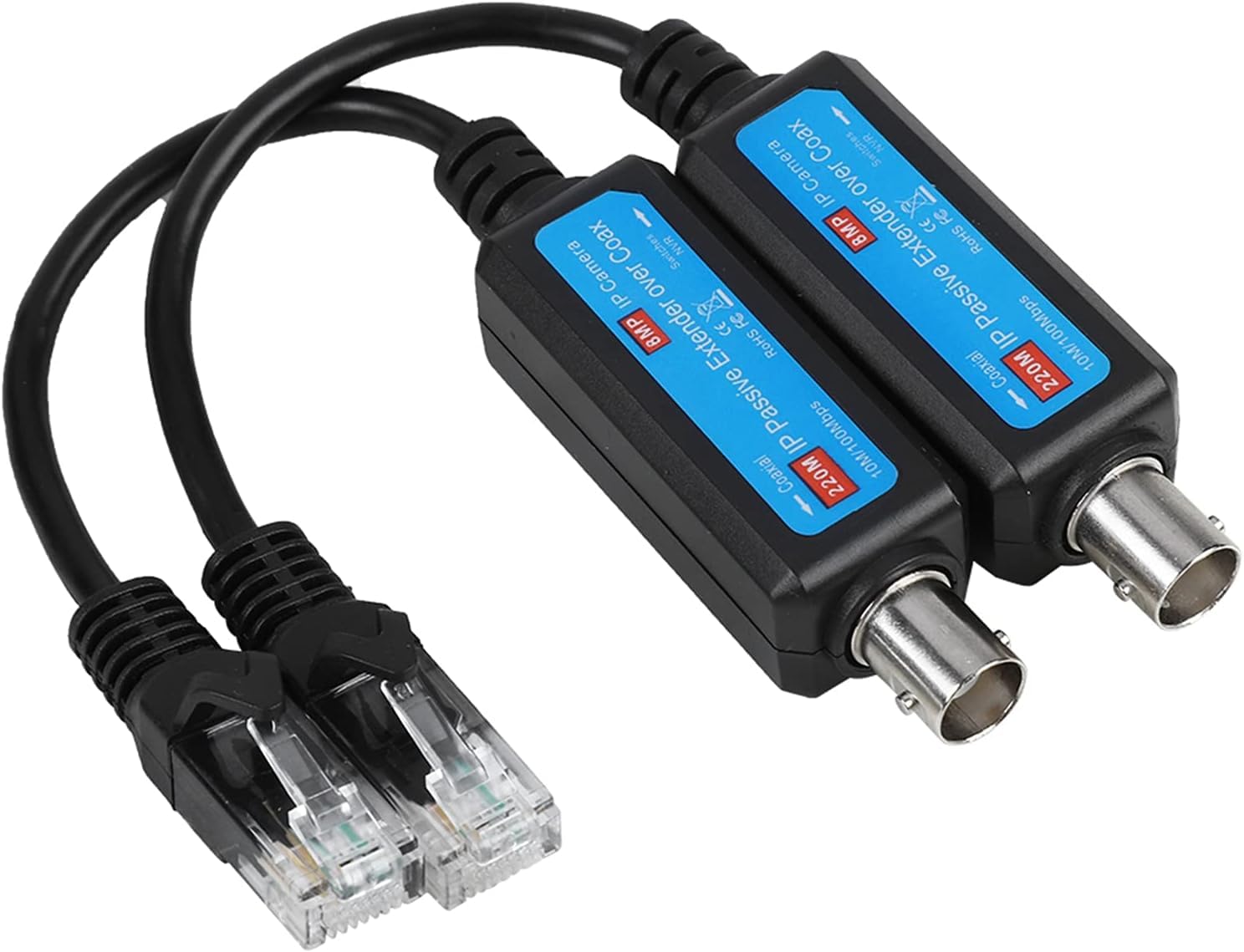

Upgrade Analog Cameras Using Coax-to-Ethernet

If you have old analog CCTV cameras using RG59 coaxial cable, you can reuse the existing wiring to run modern IP cameras—no rewiring needed.

How Coax-to-Ethernet Works

Special DualComm adapters convert Ethernet signals to travel over coaxial cable. You keep the original cabling and mounting, just replace the analog camera with an IP model.

Installation Steps

Remove the old analog camera
Install a new IP camera at the remote end
At the DVR/NVR end, connect a coax-to-Ethernet adapter to your network switch
Plug the coax into the adapter
Power the camera locally or via PoE injector

📌 User pal251 successfully upgraded after confirming the coax wasn’t in metal conduit.

Benefits

Saves cost of new cabling
Keeps existing pole mounts, enclosures
Fast retrofit with minimal downtime

✅ Best for short-to-mid distance runs (<300 ft)

Transmit Analog Video Wirelessly via RF

For legacy analog cameras outputting composite video (CVBS), a 2.4GHz RF transmitter/receiver kit can eliminate cables entirely.

Components Required

2.4GHz wireless reversing camera kit
BNC-to-RCA adapter (or custom wiring)
Power source (AC, battery, solar)
Receiver: LCD monitor, USB capture device, or TV tuner

Channel Frequencies

These kits use ISM band channels:
– CH1: 2.414 GHz
– CH2: 2.432 GHz
– CH3: 2.450 GHz
– CH4: 2.680 GHz

⚠️ Never use identical channels on transmitter and relay—this causes self-interference.

Range & Performance

Max range: 100 meters (328 ft) line-of-sight
Actual range drops with:
Walls, trees, metal structures
Wi-Fi and microwave interference
Low-quality antennas

💡 Pro Tip: Test with a $20 in-car monitor before investing in permanent receivers.

Compare Conversion Methods

Method	Best For	Max Range	Interference Risk	Cost
Wireless Bridge	IP cameras, outdoor use	1km (LOS)	Medium (2.4GHz congestion)	$70–$150
Powerline + PoE	Indoor, stable connection	Circuit-limited	Low	$80–$120
Coax-to-Ethernet	Analog-to-IP upgrade	300 ft	Very low	$60–$100
RF Transmitter	Analog video only	100 m	High	$30–$70

📊 Verdict: Wireless bridge wins for reliability and quality; RF only for temporary or budget setups.

Power Your Wireless Camera Properly

Even with wireless data, your camera still needs power. Choose wisely.

Power Options

12V DC Adapter – Most reliable, plug into wall outlet
PoE Injector – Eliminates local power if bridge supports it
Solar + Battery – Off-grid solution for remote areas
9V Battery (PP3) – Only for testing (~12 hours runtime)

⚠️ Never rely on small batteries for permanent installations.

Integrated Solutions

MikroTik RBmAP2nD: Acts as wireless client + PoE injector
Outputs 500mA PoE
Perfect for low-draw cameras
Requires RouterOS knowledge
TP-Link Nano Router: Beginner-friendly
Works in client mode
Pair with external PoE injector

Fix Base Station Wireless Issues

Some branded systems (e.g., outdoor kits) use a base station that connects to the network, while cameras link wirelessly to the base.

Switch Base Station to Wi-Fi

Open app or web interface
Go to Device Info
Tap Change Connection
Follow prompts to disconnect Ethernet, reconnect via Wi-Fi

⚠️ Common Failure Cause: Special characters in Wi-Fi password (!@#$%^&*) break authentication.

Re-pair Cameras to Base

Use the 2-button method:
1. Hold button on base station until LED flashes
2. Press and hold setup button on camera
3. Release when voice confirms pairing
4. Repeat for additional cameras

🔄 To move camera to new base: Unpair first, then re-pair.

Know the Limitations

Analog DVRs Can’t Accept IP Feeds

Standard analog DVRs cannot display IP camera feeds
Solution: Replace with hybrid NVR or add video encoder

📌 As user pal251 noted: “If it’s an analog DVR, going wireless takes more work.”

Wi-Fi Interference Is Real

Crowded 2.4GHz band causes:
– Video lag
– Dropouts
– Reduced range

Mitigation Tips

Use channel 1, 6, or 11 (non-overlapping)
Upgrade to dual-band bridges (5GHz)
Use directional antennas for long-range links

Security Best Practices

Going wireless introduces risks. Protect your system:

Always change default login (e.g., ubnt/ubnt)
Use WPA2 or WPA3 encryption
Update firmware regularly
Isolate cameras on a separate VLAN if possible
Avoid unencrypted RF transmission

🔒 Pro Tip: Use a guest network or isolated subnet to limit exposure.

Should You Convert or Buy New?

Conversion Cost: $50–$150

Includes bridge, PoE injector, power supply

New Wi-Fi Camera: $60–$200

Plug-and-play, no extra hardware

📌 As AviN456 put it: “It might be cheaper to just buy a Wi-Fi camera.”

When Conversion Makes Sense

You own high-end PoE cameras
No power or Ethernet at location
Need to reuse existing housing or pole
Specialized camera (PTZ, LPR, thermal)

✅ Otherwise, buying a Wi-Fi camera is simpler and often cheaper.

Final Tips for Success

Test before mounting: Verify signal strength and video quality at installation site
Use static IPs: Prevents connection drops after reboot
Label everything: Note IP addresses, channels, passwords
Update firmware: Ensures security and compatibility
Avoid special characters in passwords: They break some base station logins

✅ Pro Tip: Create a temporary Wi-Fi network named “test” with password “password123” to troubleshoot connection issues.

Converting a wired security camera to wireless is entirely possible—and often practical—with the right tools. For IP cameras, wireless bridges deliver the best performance. For analog systems, RF kits or coax-to-Ethernet upgrades offer viable paths.

But remember: in many cases, buying a dedicated Wi-Fi camera is easier and cheaper than retrofitting. Only convert if you already own high-value equipment or face installation constraints.

Use this guide to make an informed decision, avoid common mistakes, and keep your surveillance system running strong—wired or wireless.
