Lorex Security Camera Black Screen Solved

You power up your Lorex security system, eager to monitor your property—only to find a blank, black screen on your display. No video. No movement. Yet the recorder shows connected cameras, and the red LED on each unit is lit. This frustrating scenario is one of the most common issues Lorex users face: a Lorex security camera black screen with no clear cause. But here’s the good news—most of the time, it’s fixable without replacing hardware.

The root cause could be something as simple as a mismatched resolution or a loose cable, or as serious as surge damage or incompatible firmware. Whether you’re running an analog BNC setup or a modern PoE IP system, this guide delivers step-by-step diagnostics, proven fixes, and long-term prevention strategies to restore your video feed fast—and keep it running.

By the end, you’ll know exactly how to pinpoint whether the issue lies in your power supply, cabling, monitor compatibility, or hardware pairing, and how to resolve it confidently.

Confirm Your Monitor Supports the Recorder’s Output

A black screen with visible audio or a camera grid layout usually points to one culprit: your monitor can’t handle the recorder’s HDMI output resolution. This is especially common when your NVR or DVR is set to 4K, but you’re using a 1080p or non-4K-compatible TV.

Even though the system records normally, the display fails to render the high-resolution signal—resulting in total video blackout.

Switch to a 4K-Capable Display Temporarily

To test:
1. Disconnect the HDMI cable from your current TV.
2. Connect it to a known 4K monitor or TV.
3. Power on and check for video.

If the image appears instantly, you’ve confirmed the issue: display incompatibility.

Lower HDMI Output to 1080p

Once confirmed:
– Access the recorder menu: Menu > Display Settings > HDMI Output.
– Change resolution from 4K to 1080p.
– Save settings and reboot the system.

Now reconnect to your original display. The video should return.

Pro Tip: Always verify your monitor’s specs before upgrading camera resolution. A 4K DVR paired with a 1080p screen is a leading cause of black screens.

Test with a Different Monitor or TV

If you’re unsure whether your TV supports 4K:
– Borrow a 4K monitor or use a PC monitor with HDMI input.
– Plug in and observe the feed.

This quick swap eliminates guesswork and confirms whether the problem is at the display end—not the camera, cable, or recorder.

Verify Power Supply at the Camera

Just because the red LED is on doesn’t mean the camera has enough power to transmit video. Low voltage or unstable current can prevent operation even if minimal power reaches the unit.

Use a Multimeter to Test Voltage

At the camera end:
– Disconnect the power cable.
– Set your multimeter to DC voltage.
– Measure between the center pin and outer sleeve.

You should read:
– 12V DC for most Lorex cameras
– 24V AC/DC for select models (check specs)

If voltage is below 10.5V, you’re experiencing voltage drop—a common issue in long cable runs.

Expert Insight: “Cameras may appear powered but still fail due to insufficient amperage. Voltage alone doesn’t guarantee full operation.” – Lorex Support Technician

Common Power Issues and Fixes

Overloaded power adapter: Replace with a Lorex-certified unit.
Long cable runs: Use 18 AWG or thicker cables to reduce resistance.
Weak power delivery: Install midspan power injectors for runs over 60 feet.

Diagnose PoE Power Budget Overload

Lorex NVRs use Power over Ethernet (PoE) to deliver power and data through one cable. But each NVR has a maximum PoE budget—typically between 80W and 220W.

Connecting too many high-draw cameras (like 4K or PTZ models) can exceed this limit, causing black screens or dropped feeds.

Calculate Total Power Consumption

Find each camera’s max power draw (in watts) in the product specs.
Add them up.
Compare to your NVR’s PoE capacity.

Example:
– NVR budget: 160W
– 8 × 15W cameras = 120W → ✅ Safe
– 8 × 25W cameras = 200W → ❌ Overload

Use an External PoE Switch

If you’re over budget:
– Connect high-power cameras to an external PoE switch.
– The switch powers the cameras; the NVR handles data.

When to Use a PoE Switch: When expanding your system or adding 4K/PTZ units beyond the NVR’s power capacity.

Inspect Coaxial and Ethernet Cables for Damage

A damaged BNC coaxial or Ethernet cable can block video while still delivering power—resulting in a powered camera with a black screen.

Moisture, sharp bends, and poor connectors are frequent causes.

Signs of Cable Failure

Intermittent blackouts
Flickering image before going dark
No video despite LED activity

Test by Swapping Cables

Replace the suspect cable with a known working one.
If video returns, the original cable is faulty.
For BNC systems, inspect connectors for:
– Bent center pins
– Corrosion (green/white residue)
– Loose threading

User Case: One homeowner confirmed 12V at all outputs but had zero video. After replacing coaxial cables, all cameras returned—proving cable integrity is critical.

Prevent Cable Damage

Use weatherproof conduit for outdoor runs.
Avoid sharp bends (minimum 4-inch radius).
Seal connections with waterproof gel sleeves or tape.

Reseat and Clean BNC Connectors

Loose or corroded BNC connectors can break the video signal while leaving power intact.

Step-by-Step Fix

Disconnect each BNC cable from the DVR and camera.
Inspect for:
– Bent center pin (common during installation)
– Oxidation or corrosion
Clean contacts with electronic contact cleaner.
Reconnect firmly—hand-tighten only.

Warning: Forcing a connector with a bent pin can permanently damage the DVR port.

Label Cables for Easy Troubleshooting

During installation, label each camera and port. This speeds up diagnostics and reduces miswiring risks.

Check for Surge or Lightning Damage

Outdoor cameras mounted on metal poles are vulnerable to lightning strikes and power surges. Even a minor surge can fry internal components—especially the image sensor or power regulator.

Symptoms of Surge Damage

No LED or dim lighting
No response to power or input
Black screen across multiple cameras
Burnt smell or discoloration on housing

Diagnose

Test the camera on a known working port and power supply.
If still no video, the camera is likely dead.

Prevent Future Damage

Install surge protectors on power and video lines.
Use grounding kits for outdoor units.
Avoid direct pole mounting without protection.

Note: Surge damage is often not covered under warranty unless proper grounding was used.

Update Recorder and Camera Firmware

Outdated DVR/NVR or camera firmware can cause video decoding errors, black screens, or camera recognition failures—especially after system updates or expansions.

How to Update Firmware

Visit lorex.com → Support > Downloads.
Enter your recorder model number.
Download the latest firmware.
Copy to a USB drive (FAT32 formatted).
Insert into recorder → System Menu > Maintenance > Upgrade.
Reboot after installation.

Critical: Update both recorder and camera firmware together when possible.

After Updating

Perform a factory reset.
Re-add cameras.
Reconfigure motion zones and recording.

Pro Tip: Keep a log of firmware versions and update dates for future troubleshooting.

Verify Camera-Recorder Compatibility

Lorex cameras are not universally compatible. A newer 4K IP camera won’t work with an older analog HD-TVI DVR.

How to Check Compatibility

Use Lorex’s official compatibility tool.
Consult the product manual.
Avoid mixing analog and IP cameras unless the system is hybrid-capable.

Example

Lorex 4K IP camera + analog DVR = black screen, even with correct power and cable.

Solution

Replace with a compatible camera.
Upgrade the recorder if needed.

Warning: Third-party or generic cameras often fail to sync with Lorex systems.

Perform Systematic Port Testing

When one camera shows a black screen, isolate the issue step by step.

Step-by-Step Diagnostic Test

Connect camera to a working port → If video appears, original port may be faulty.
Try a different power adapter → Rule out power issues.
Swap the cable → Test with a known good one.
Cover the lens in daylight → Watch for red IR LEDs and listen for a click (IR cut filter switching).
– If active, the camera is likely functional.
If no response, the camera may be dead.

Expert Note: A black screen across all cameras suggests a system-wide issue:
– Main video processor failure
– Power supply overload
– Firmware corruption
– Bulk cable fault

Prevent Future Black Screen Issues

Avoid recurring problems with proactive maintenance.

Monthly Checks

Inspect outdoor cables for cracks or moisture.
Tighten BNC and power connections.
Clean camera lenses and housings.
Verify LEDs respond to light changes.

Annual Actions

Test backup recordings.
Update firmware.
Replace aging power adapters (every 3–5 years).
Audit cable runs for wear.

Pro Tip: Label every camera and port. Use a diagram to track model numbers, cable types, and firmware versions.

Contact Lorex Support When All Else Fails

If you’ve tried every step and still see a black screen:
– Call Lorex Technical Support: 1-888-425-6739
– Have ready:
– Recorder and camera model numbers
– Proof of purchase
– Firmware versions
– List of troubleshooting steps taken

They can:
– Verify compatibility
– Provide firmware files
– Diagnose hardware failure
– Process warranty claims (1–2 years on cameras)

Note: Keep your receipt. Warranty does not cover surge damage without proper grounding.

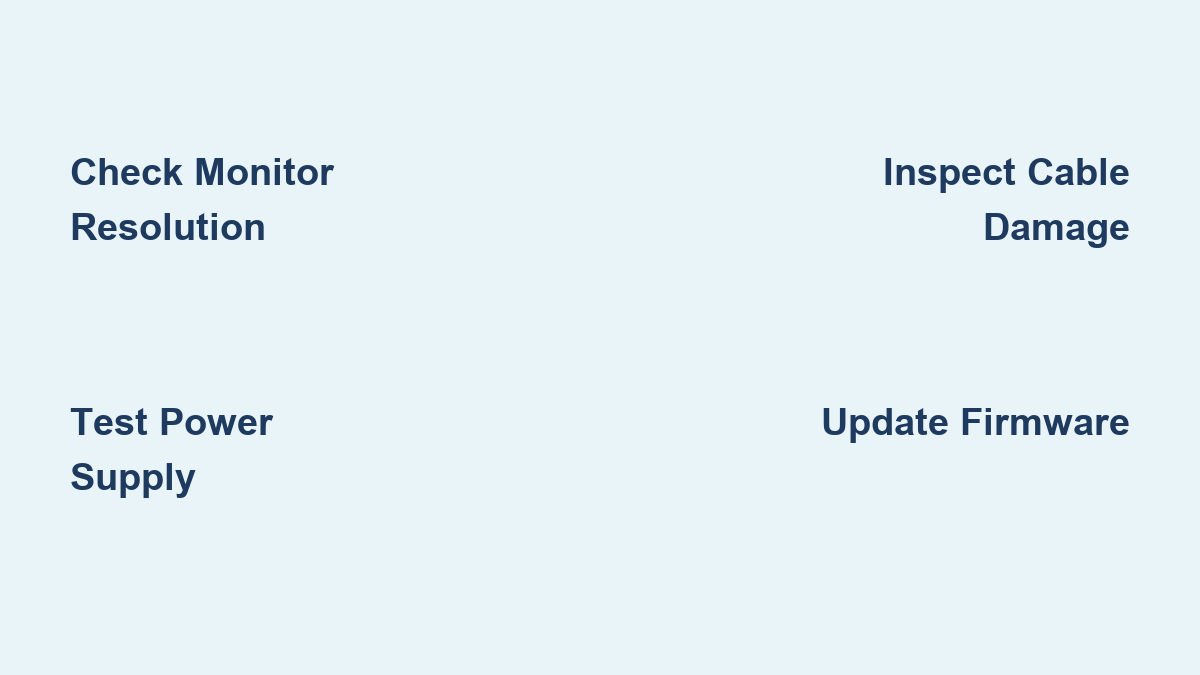

A Lorex security camera black screen is rarely a mystery—it’s a signal that one part of the chain is broken. Whether it’s power, cable, resolution, or compatibility, this guide gives you the tools to fix it fast. Start with the monitor, test power at the source, swap cables, and update firmware. In most cases, video returns within minutes. Stay proactive, document your setup, and your system will run smoothly for years.
